NGINX Web Server

Overview

Use this guide to deploy the NGINX Web Server on an existing Kubernetes cluster from Bridge application catalog.

Prerequisites

• Tenant Admin access
• A running Kubernetes cluster

Deploy NGINX from Catalog

Step 1: Open Cluster Workloads

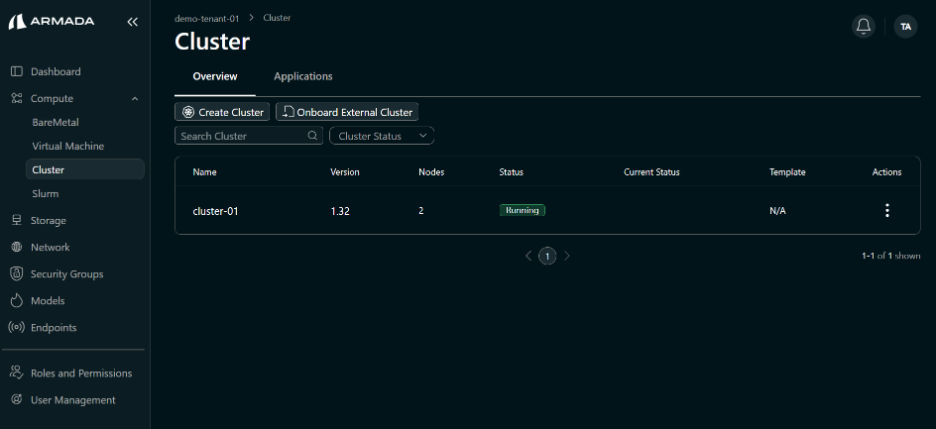

1. Click the cluster name to open the cluster overview.
2. Navigate to the Workloads tab.
3. Click Add Workloads.

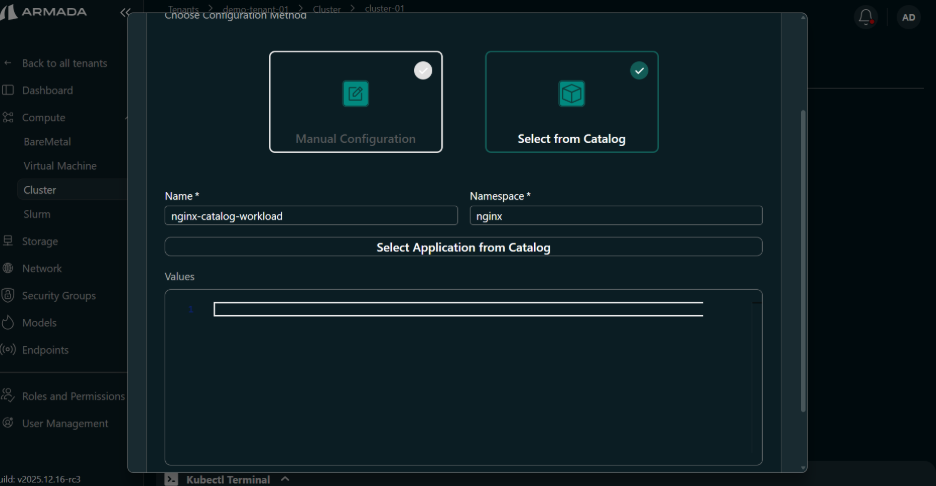

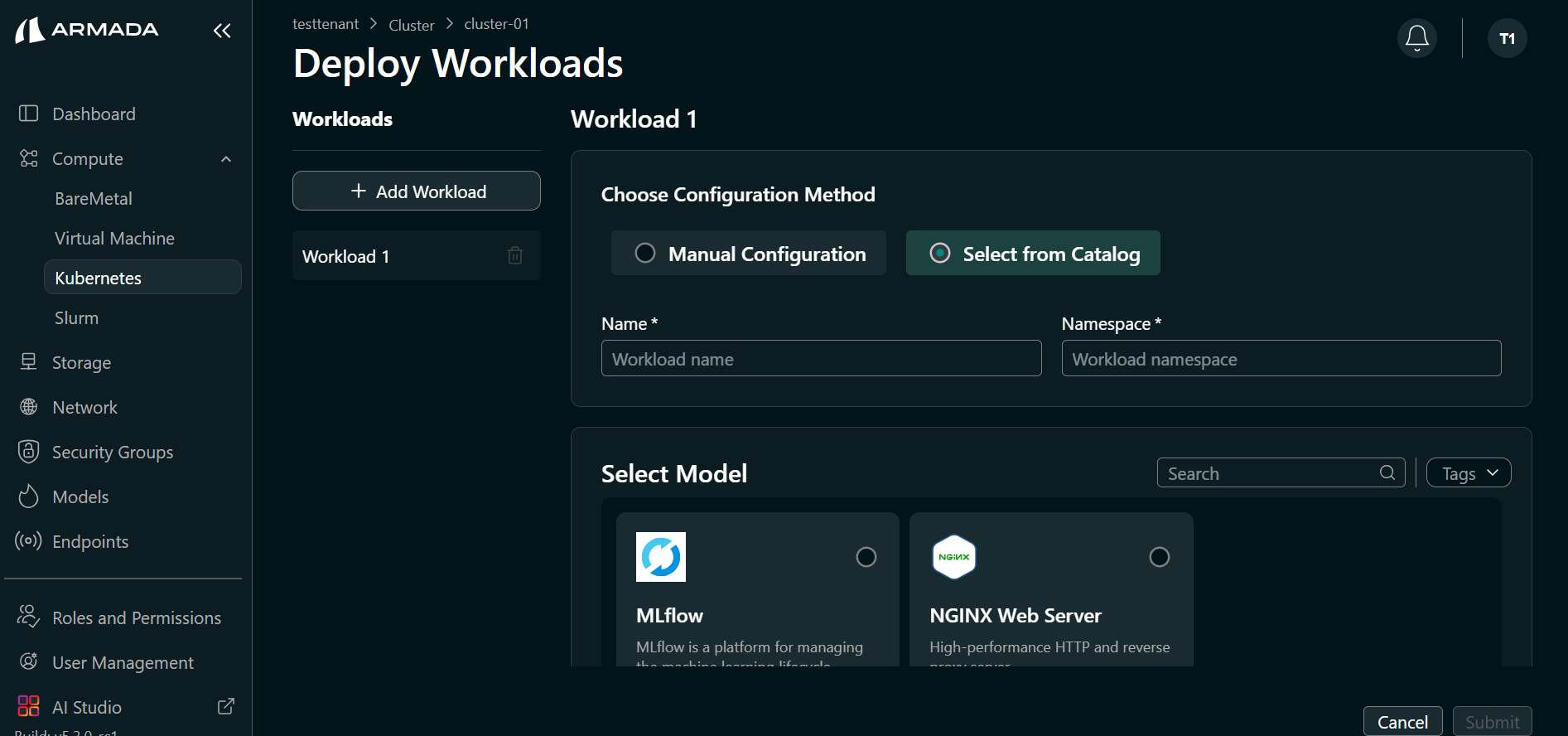

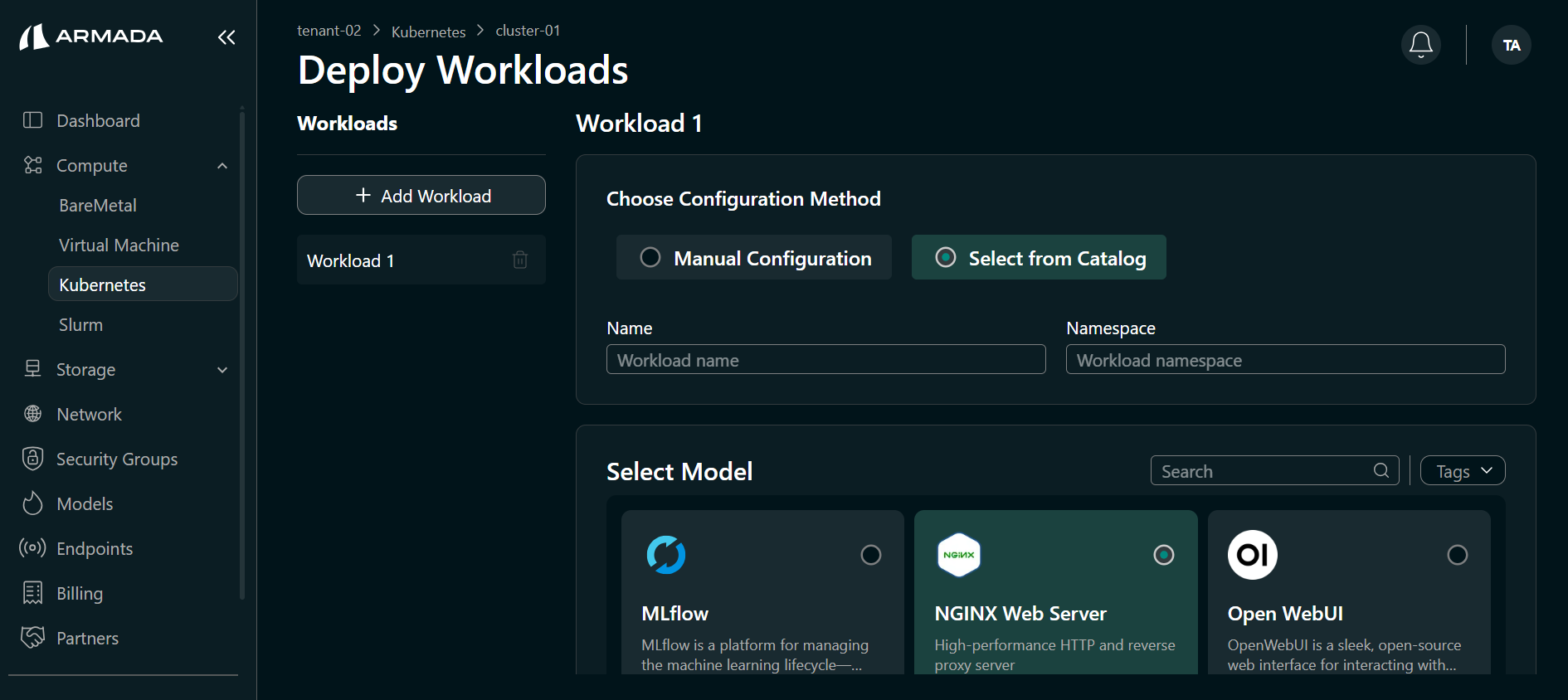

Step 2: Configure Workload and Select NGINX

1. Set Configuration Method to Select from Catalog.
2. Enter Name (for example, nginx-app-01).
3. Enter Namespace (for example, nginx).

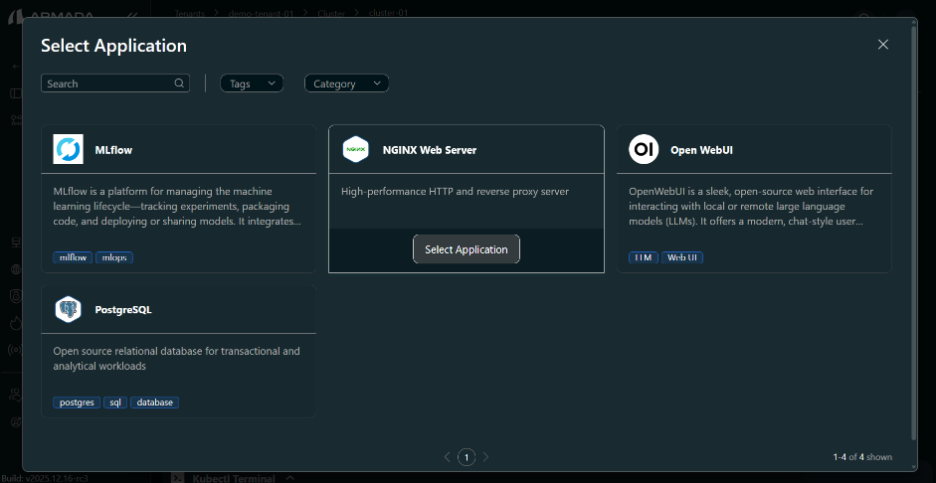

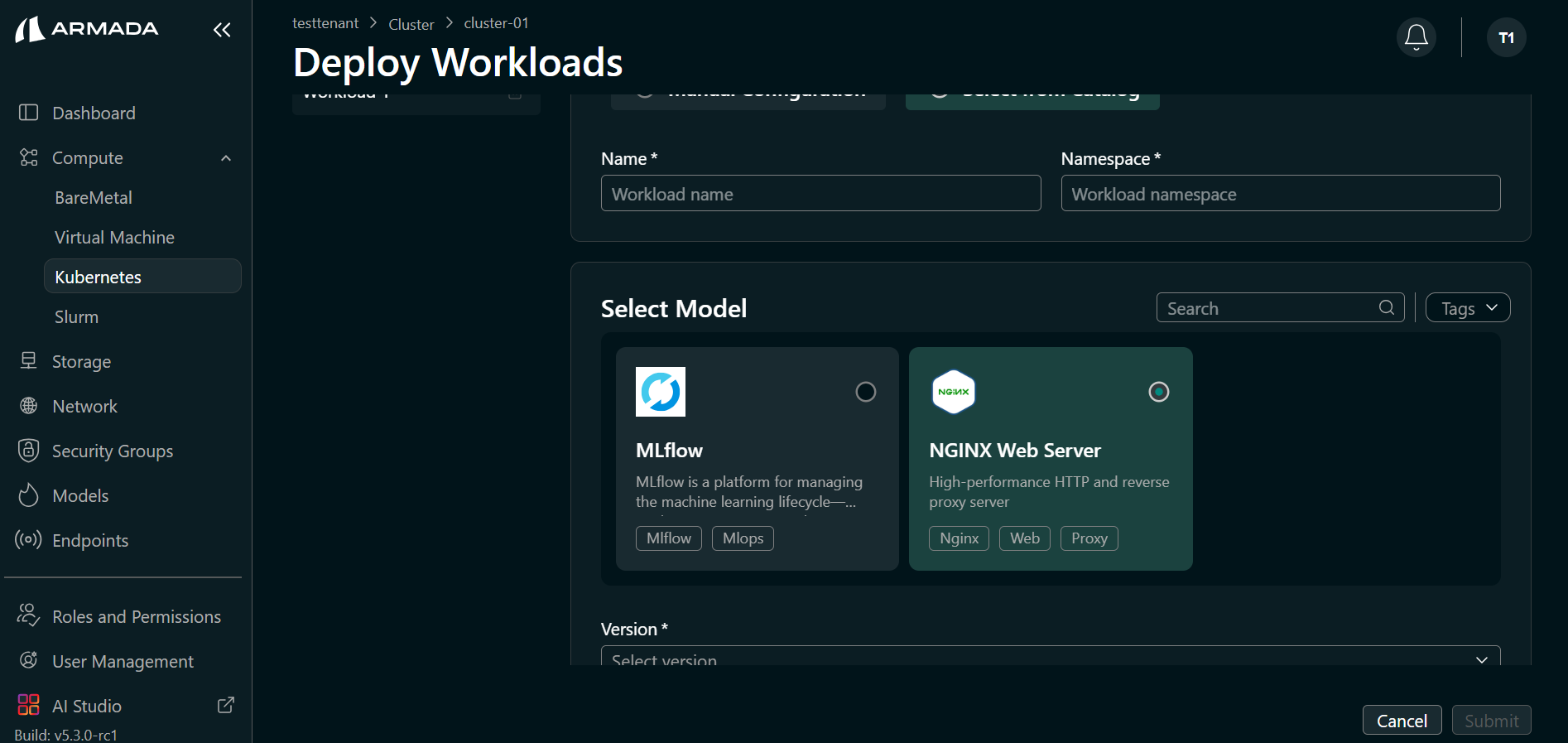

4. Select NGINX Web Server from the catalog.

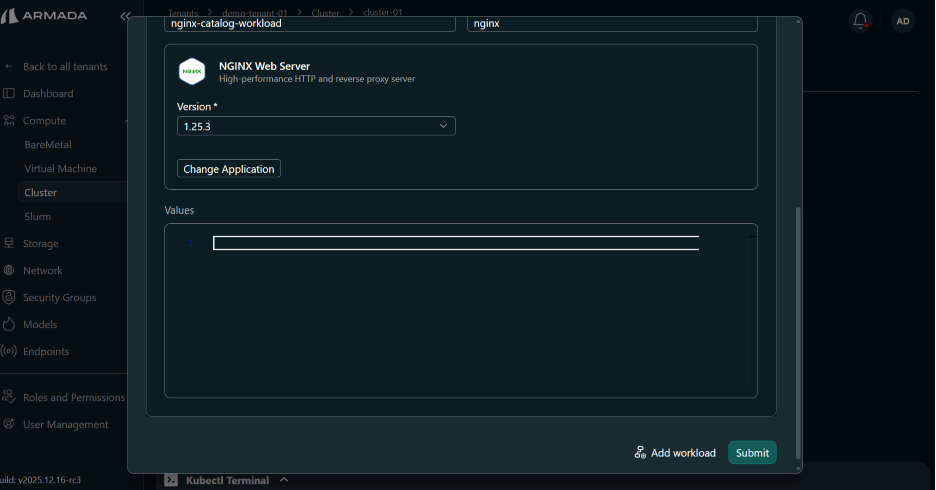

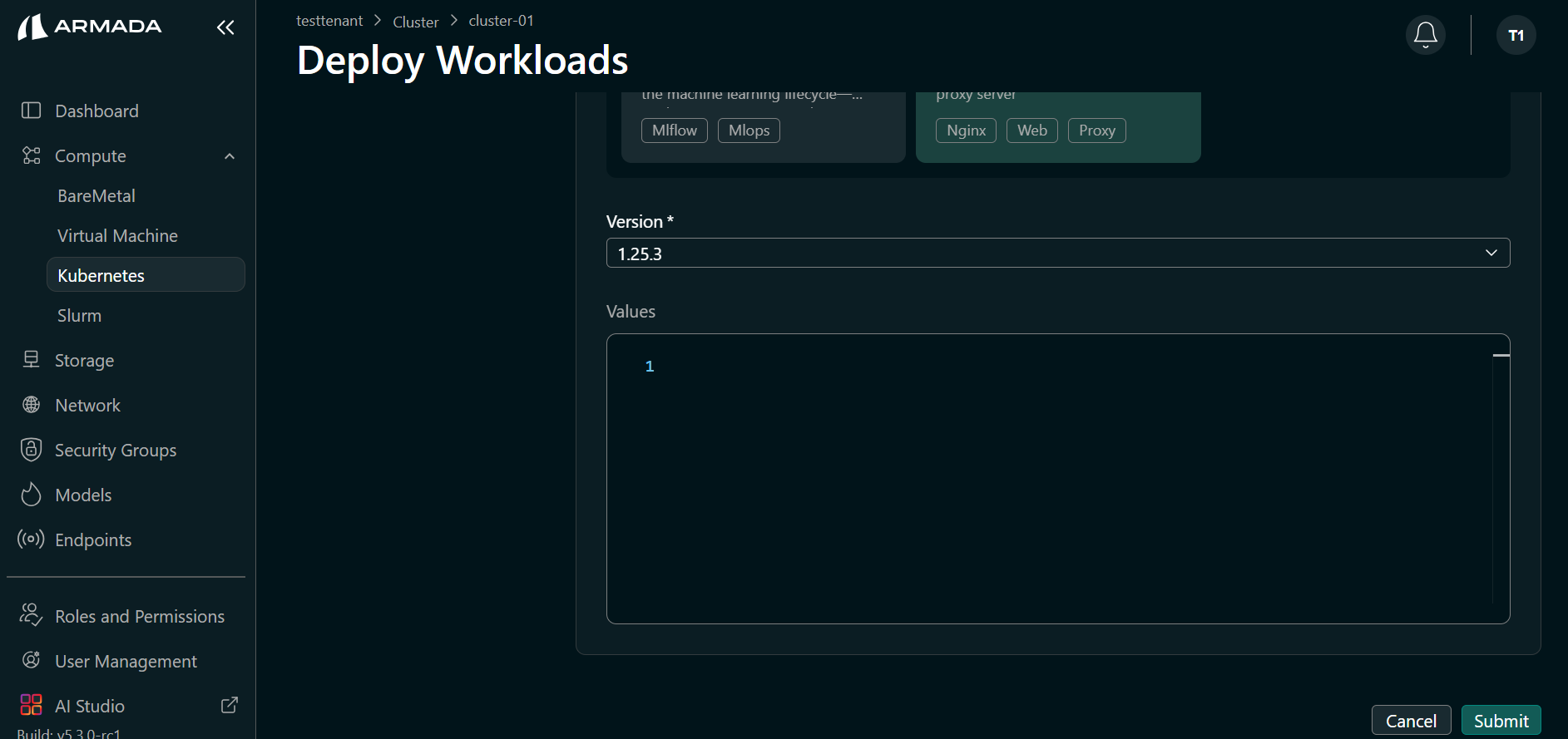

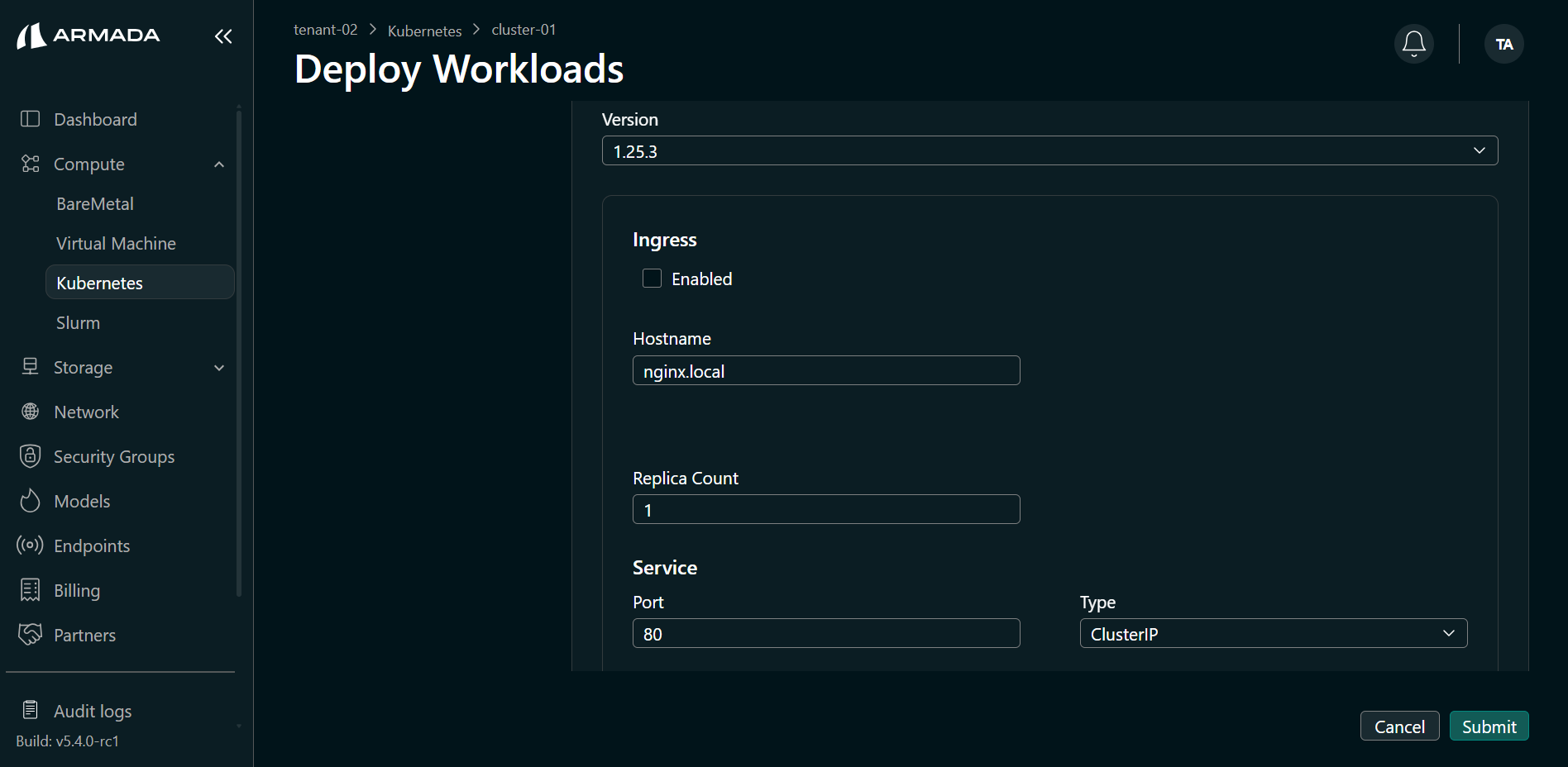

Step 3: Choose Version and Deploy

1. Select the required NGINX version (for example, 1.25.3).
2. Provide optional Ingress values if required by your environment.
3. Click Submit to deploy the workload.

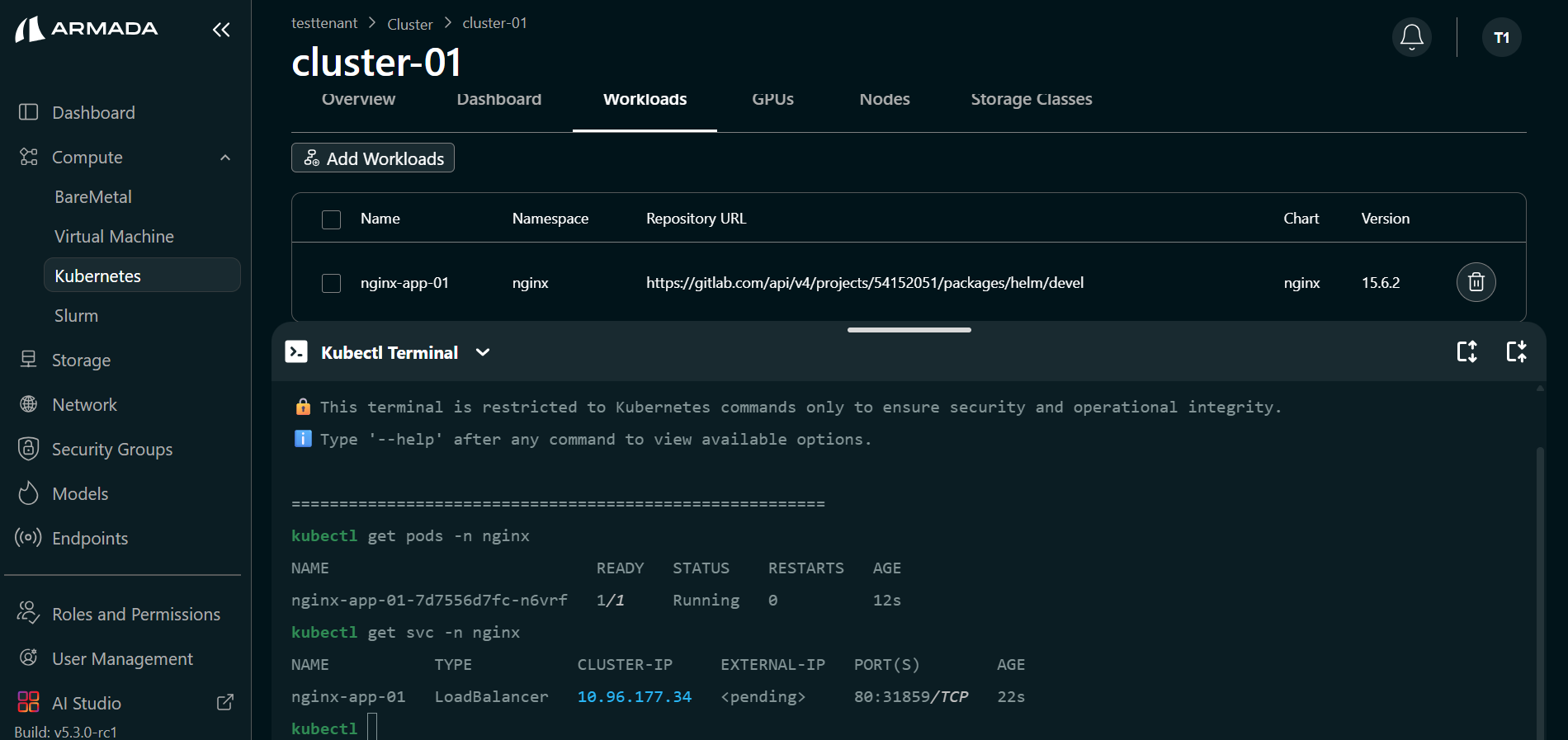

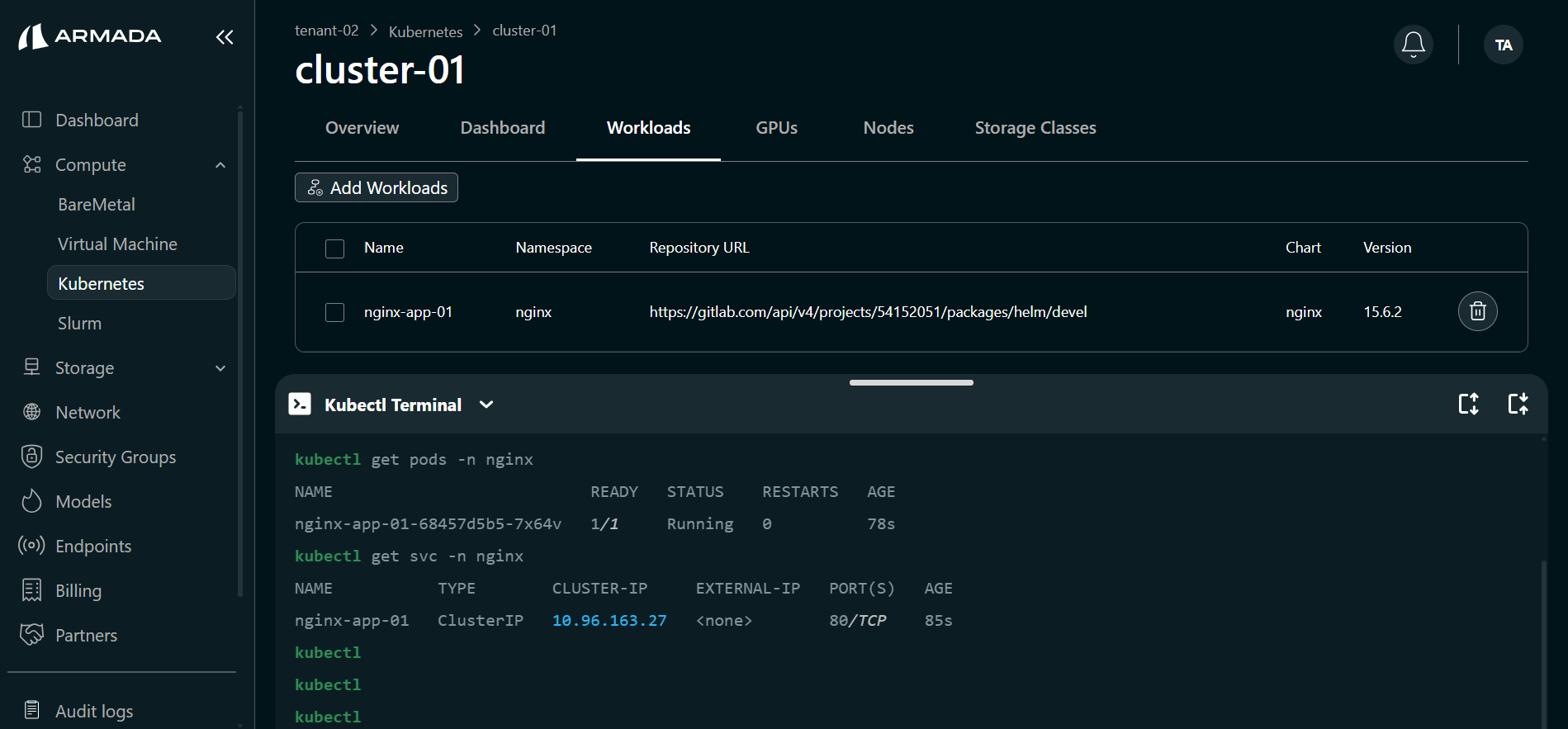

Step 4: Verify Deployment Status

1. Open Kubectl Terminal from the cluster.
2. Verify pod status:

kubectl get pods -n nginx

3. Verify service status:

kubectl get svc -n nginx
